Charging Station Solutions

GoPlug develops innovative charging stations and software solutions for commercial and residential users. GoPlug is based on a proven platform, which powers nearly 20,000 charging stations in 60 countries on five continents. You can juice your car with this charge point with confidence!

Users Manual


GoPlug charging stations include industry leading features at a very reasonable price.

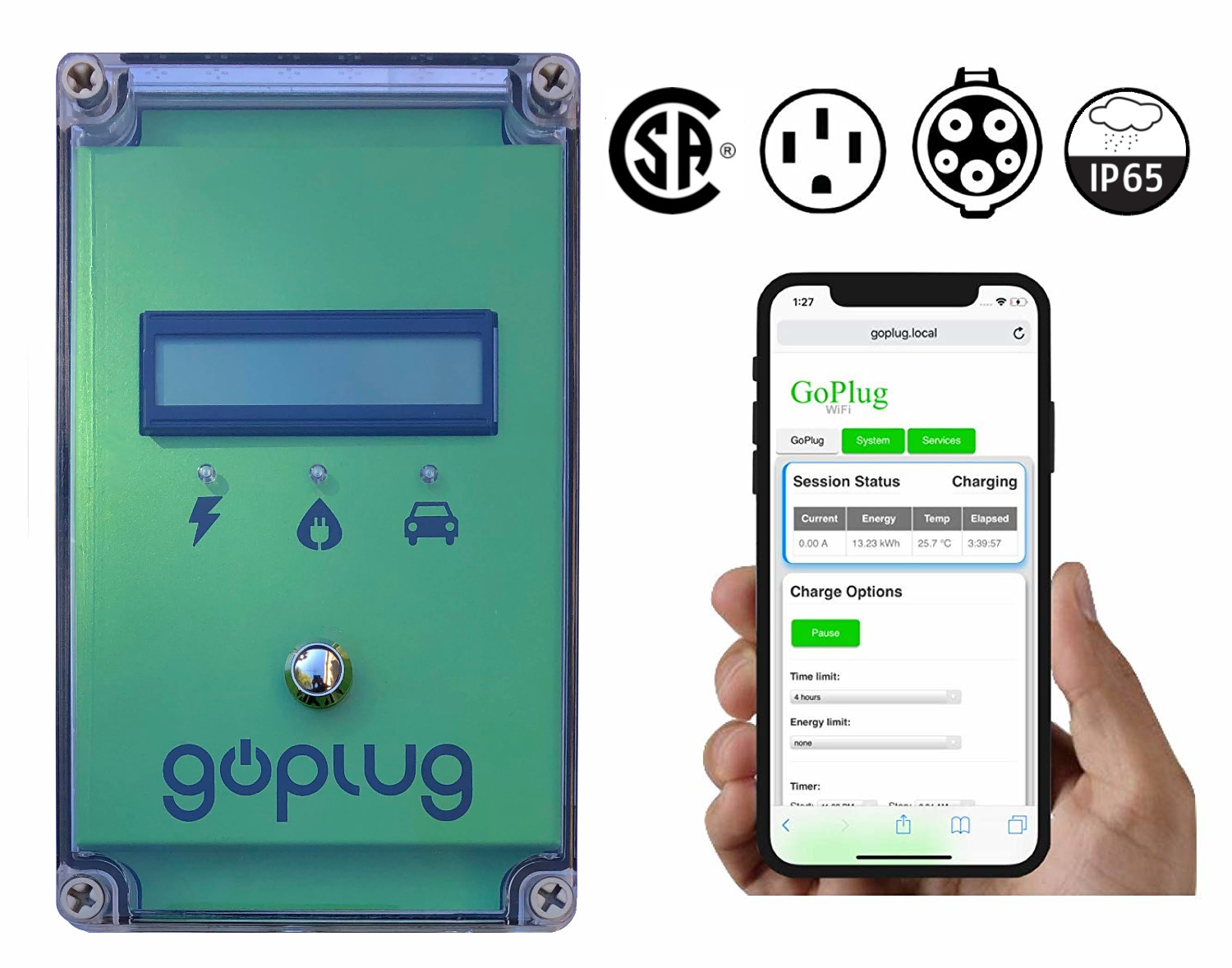

Interactive Display

The LCD display provides live power usage, state information & quick access to settings

Session Options

Charge to full, Charge for xxx Minutes (15 min increments) or Add xxx kWh (1kWh increments).


Based on the SAE J1772 and IEC Standards. Compatible with all electric vehicles.


All safety features required by SAE J1772, UL and NEC are standard. Ground Fault Protection - CCID 5 mA, auto reset.

Adjustable Current

Current is quickly adjustable on the display with the press of the button.


Compact & lightweight, use your charging station at home or on the go.

Remote API

Tools to integrate charging station with home automation and energy monitoring

Self Test

During power up & before each charge session, the charging station performs an extensive safety check.

What Customers say?


32 Amp charging. Fully featured. Low price.


Power interlock - Charge handle is not energized until extensive self testing and negotiation with vehicle is complete

Pilot Signal - Capibilities of electrical circuit and state are communicated with the vehicle

Ground Monitoring - Charging station continuously monitors safety ground while charging.

Ground Fault Interupt - Charging station monitors power leakage to ground, fault current 5 mA.


State - Charging Station and EV State are clearly displayed.

Power - Real time Power information Current (Amps), Power Delivered for the current charge session (Watt Hours) & Total Lifetime Power (Kilowatt Hours)

Settings - Settings and Features can be easily adjusted with the push button and menu interface.

Powerful Performance

32 Amp Charging - Requires 40 Amp circuit

3 Year Warranty

Designed in USA

Weight: 11.00bs Size: 11.8" (300mm) x 5.5" (140mm) x 4.4" (112mm)

Includes Mounting Hardware and a Plug Holder With Integrated Cable Management

Charge Cable - SAE J1772 / IEC Type 1 - Length 18 feet

Input - NEMA 14-50 - Length 1.5 Feet

GoPlug SAE J1772 NEMA 14-50
